Lippmann Plate Photography Demonstrate Standing Waves That Remember Every Hue

In 1891, Gabriel Lippmann made a breakthrough in color recording. Instead of relying on added chemicals or substances, he took advantage of light waves’ intrinsic behavior. It’s no wonder that this revolutionary achievement earned him the Nobel Prize in Physics in 1908. For years, scientists had been attempting to understand natural color photography, with typical methods including either tedious hand coloring or layering filters on images. Lippmann, on the other hand, was not having it, and came up with the brilliant concept of using interference to capture colors exactly as they were in the picture.

The journey begins with a blank glass plate that has been thinly coated by an experienced emulsion producer. The emulsion is made up of microscopic silver halide grains floating in a gelatinous liquid. The granules are merely a fraction of a millimeter across, allowing them to register even the smallest nuances in light. The next step is exposure, which begins once the plate is loaded into a camera. The coated side is actually mounted away from the lens and forced up against a reflective surface, as liquid mercury is commonly used for this because it produces an air-tight seal that perfects the connection, albeit liquid mercury was once the way to go.

The light then has to pass through the glass and emulsion before bouncing off a mirror and back out. As light returns to the emulsion, it collides with its own reflection, causing standing waves to form immediately. Each wavelength then decides to make its own small pattern of high and low intensity, and the silver grains react where the intensity peaks and breaks down accordingly. After that, the plate is sent to a dark room where a series of chemical reactions take place, transforming the exposed grains into metal silver and washing them away, leaving behind tiny silver layers layered throughout the emulsion depth, at the same intervals that exactly match the original wavelengths.

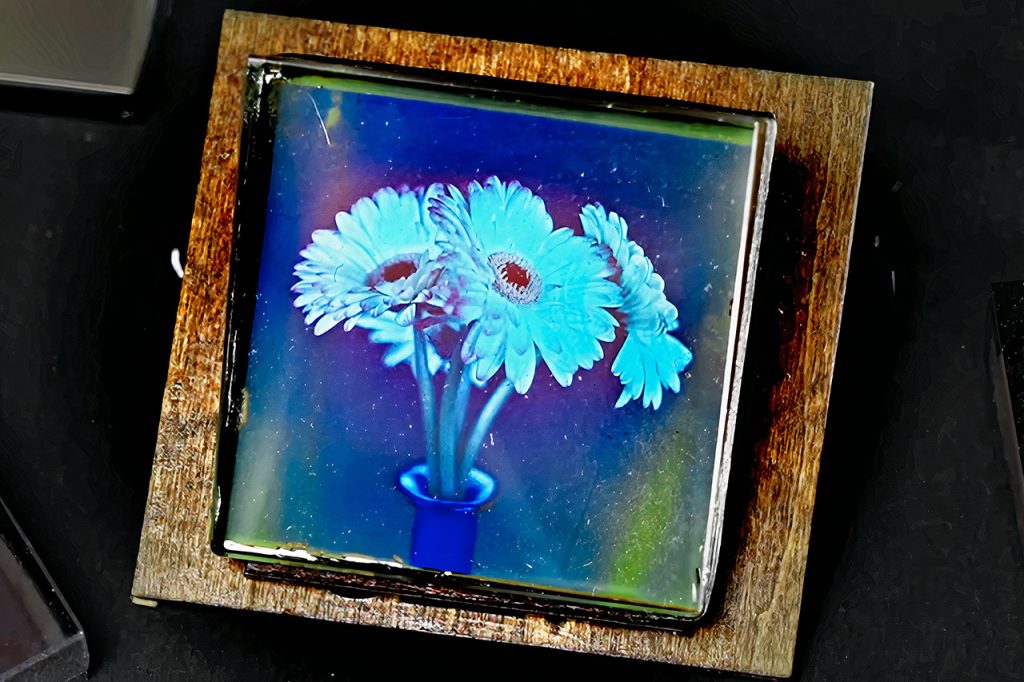

Viewing requires directing white light at it from specific angles. Then light bounces off the silver layers again and again. The wavelengths that match the spacing begin to reinforce one another in a process known as constructive interference, while other wavelengths cancel out or scatter weakly, resulting in the identical colours recorded at that specific place. The colors, however, originate simply from the physical structure left behind by light, rather than being caused by any pigments or dyes. Each part of the image contains the entire spectrum of colors that were recorded at that specific location. The finished product is visually appealing, as well as extremely accurate and vivid.

Many enthusiasts have come up with the idea of reviving this old technology, and there have recently been numerous workshops where individuals are mixing new emulsions and coating plates themselves. They also set up the cameras and load the plates, which are subsequently exposed to light under the most controlled settings. After that, the plate is thoroughly treated with the appropriate chemicals and neatly mounted. Nowadays, they also attach special prisms to the front to help guide the light in the appropriate direction, allowing the colors to come out clearly. This technique has applications beyond art; archivists have been experimenting with it as a new type of permanent data storage.
