Plasma Arcs Replace Flames in a Battery-Powered Camping Stove

Jay from the Plasma Channel wanted to take cooking off the grid, eliminating gas and those pesky open flames in the process. He pulled off the trick by putting together a portable burner that generates plasma discharges using rechargeable batteries and blasts them directly into a metal pan. Result? Slap this thing down on a table or picnic blanket and you’ll have a sizzling hot meal in minutes, like scrambled eggs or crispy bacon.

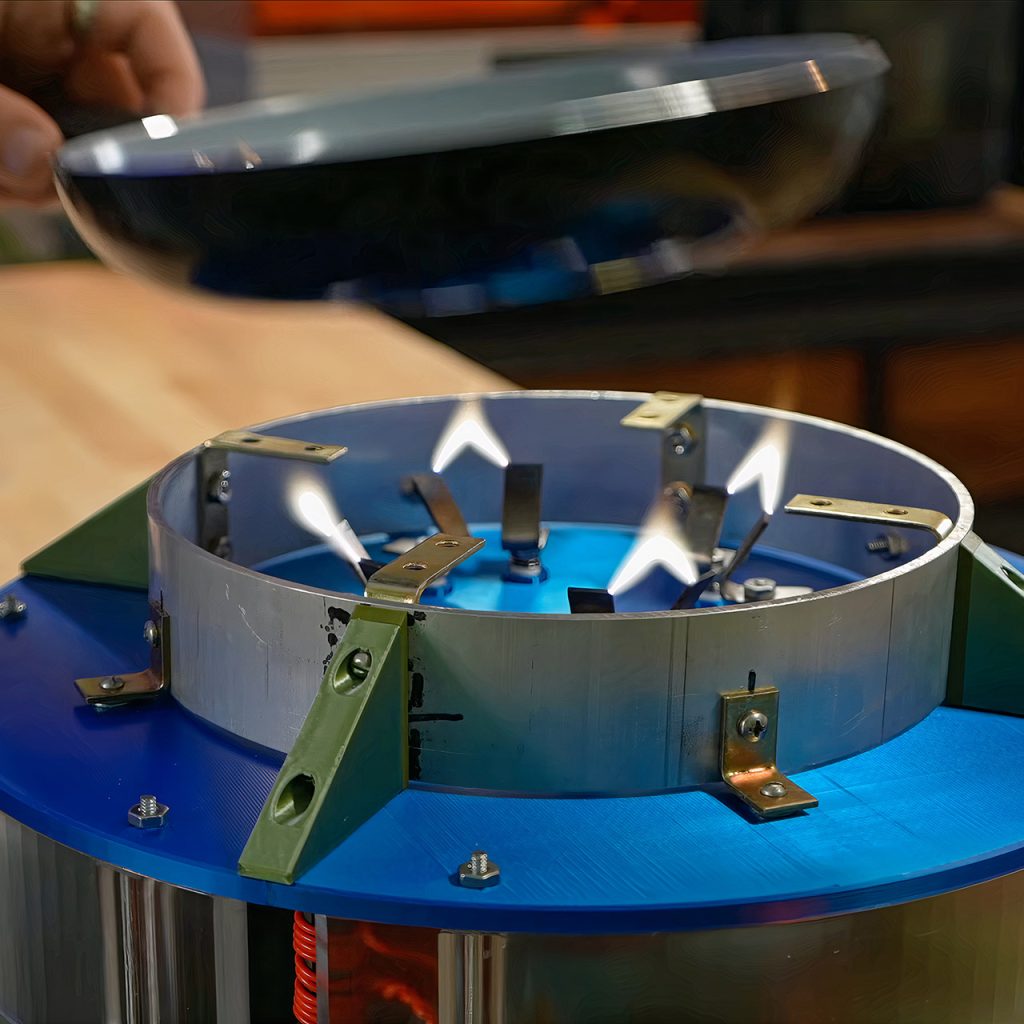

Jay’s plasma research resulted in a system of four distinct high-voltage sources arranged in a square formation. Each starts with a spark bouncing between electrodes that are only one centimeter apart. When the spark forms and is pushed up by the heat rising from it, it strikes the pan sitting on top, and voilà! Four of them functioning together means that the heat is uniformly distributed across the bottom of the pan. It’s a 600-watt beast that can cook two complete dinners on a single charge.

The batteries power everything, in this case two massive lithium-polymer packs with a total output of twenty amp-hours. That implies the stove does not require a wall outlet to operate. A cooling fan prevents the electronics from overheating during extended operation. The outside shell is held together with strong adhesive and 3D printed elements, and the translucent panels let you to watch the arcs burning while the stove is in action.

The custom coils, however, are the true core of the system. Jay created resin formers, coiled thousands of turns of thin wire on a machine, and then sealed it all up with more resin, making sure to remove all air bubbles. Trapped air would simply generate a rapid flashover, frying the coil. He upgraded the driver circuits to higher-quality capacitors and transistors because the off-the-shelf ones were failing under load.

One of the initial issues was that the system kept burning up the circuit boards because all four drivers were attached to the same ground ring and were essentially battling each other. So Jay realized he needed to rewire each coil output to its own dedicated electrode pair; voila, no more electrical coupling and smooth sailing. Then there was the issue with the stainless steel bolts; at first, they were producing problems because the surface oxides were making poor connections and melting under current, but swapping to brass resolved that quickly.

When you turn this device on, you hear a continuous hum from the drivers and fan, but when it’s at full power, the arcs produce a wilder, louder sound. The plasma channels are stretching and stabilizing. A thermal camera will show you the pan transitioning from cold to cooking temperature in about a minute. Water tests also proved that energy is being transferred: fifty milliliters of water being heated from seventy to one hundred seventy degrees in just over six minutes, even at reduced power. The plasma itself is a warm 6000 degrees Fahrenheit.
