2026 U-Boat Worx Super Sub Brings Panoramic Views and Hydrofoil Speed to Private Dives

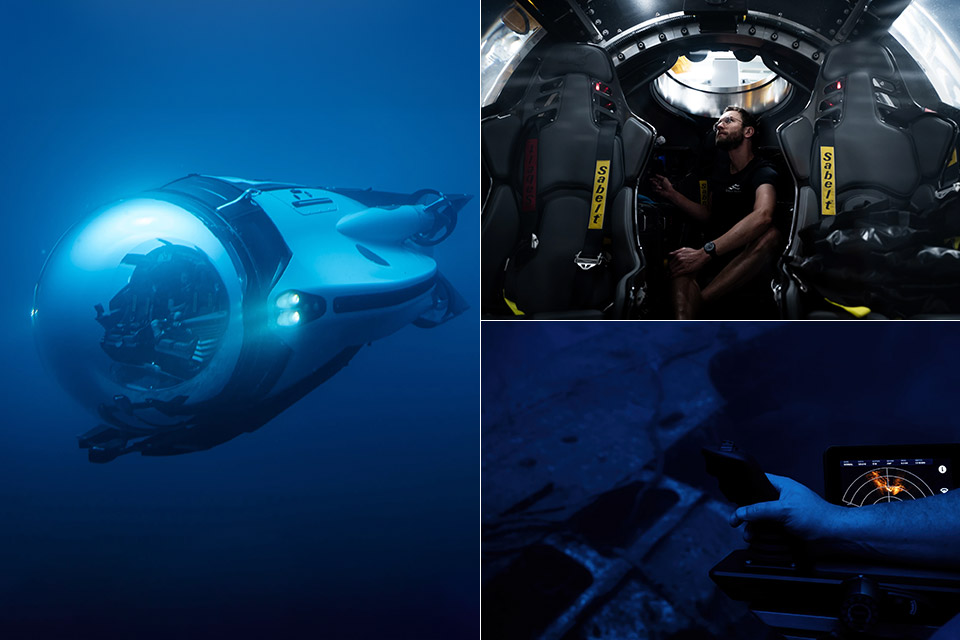

Unlimited resources truly open up every potential for ocean exploration, and the latest U-Boat Worx innovation elevates a private submarine to new heights. Its most recent offering, the updated Super Sub, has caught up with the speed of aquatic life at depth and can keep up with it. This vessel can carry a pilot and two passengers down to 300 meters at a speed of 10 knots, which is much faster than most other personal submersibles to say the least.

The Super Sub’s body was literally expanded from nose to tail, and side wings were added to increase the overall width to 3.27 metres. That’s essentially a revolutionary body shape designed to cut through the water with minimal resistance. An acrylic pressure hull in the front provides passengers with a practically unobstructed view in all directions because it is free of tanks and other equipment.Passengers relax in quality leather seats inside a climate-controlled cabin with all the amenities, including air flow controls to keep things just right, a Bluetooth music system, and even space to store chilled drinks.

Four electric thrusters in the back provide a total of 100 kilowatts of forward power. A handful of smaller thrusters installed on the wings provide a further 12 kilowatts of control. They run on a 62-kilowatt-hour battery, which provides 8 hours of operation or around 18 kilometers at cruise speed. Hydrofoils attached to the rear thrusters may tilt to direct the force precisely, allowing the submarine to bank around curves of up to 30 degrees or climb and descend at steep angles of up to 45 degrees.

The pilot uses a joystick controller called the SHARC system, which connects the thrusters and hydrofoils for quick response at any angle. For surface navigation, there is a wireless remote called MARLIN, which allows you to position the sub over a dive site or direct it away from the support yacht before beginning your dive. The screens inside provide real-time tracking data from a wide-angle sonar capable of scanning 130 degrees ahead for 100 meters. It has auto-tweak functionality, which allows it to avoid obstacles in real time.

If you want to take a break from the controls, the sub includes automated depth and direction hold functions that will keep you stable. A maximum depth protector prevents the sub from diving deeper than 300 meters and returns it to the surface if it approaches the limit. To be safe, there is a deadman switch that will automatically surface the sub if the pilot stops responding after a certain amount of time. The backup life support system will keep you alive for 96 hours by providing oxygen, food, water, and other necessities. In an emergency, there’s a manual drop-weight release that adds extra buoyancy to assist you go back to the surface quickly, as well as a line that marks your position once you’ve resurfaced. To top it all off, the independent DNV organization certifies that all of these safety elements meet the tightest criteria after testing the Super Sub in the waters near Curaçao.

The Super Sub weighs 9,000 kg and still has room to slip into the water from a yacht deck or dock thanks to the handy sliding freeboard extension, which allows you to lift the hatch in turbulent circumstances without fear of it getting caught. Let’s not forget those strong lights on the outside; when you’re diving, they light up the seafloor or wrecks and provide a magnificent view down into the depths, transforming what was once a boring old view out to sea into a true window into the secret world beneath the waves.

When you look at the price tag, it’s roughly 5.2 million euros, or around 6 million dollars, which covers the entire vessel from the moment it leaves the factory floor to the day it’s delivered with all of the documentation completed. U-Boat Worx, the Dutch business behind dozens of these submarines since 2005, has refined its design over the years, and the latest Super Sub is their fastest model yet.
